SINGLE Screw Connector
BSSC

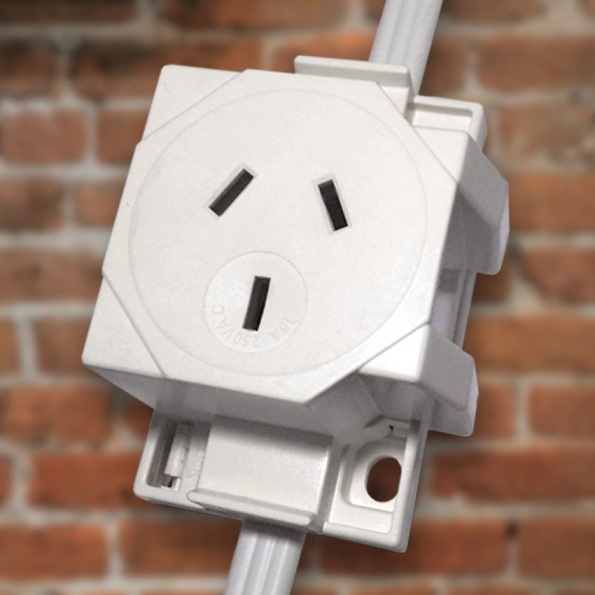

SUPER Surface Socket
A quick and easy solution to adding a 10 Amp power outlet for :
Recommended For : 1.5mm² to 2.5mm² 3 Core Flat TPS Cable
Pin Type / Nominal Amps / Voltage : 3 Pin Flat / 10A / 250Vac
Strip Length : Mid cable: 50mm / End cable: 60mm
Fits Smallest Cut Out : 65mm Diameter
Closed Size : 70 x 50 x 45(H) mm
Mounts : Twin 5mm holes
Small Box Qty : 10 Pieces
Carton Qty : 200 Pcs (20 Small Boxes)
COMPLIES WITH AUSTRALIAN STANDARDS

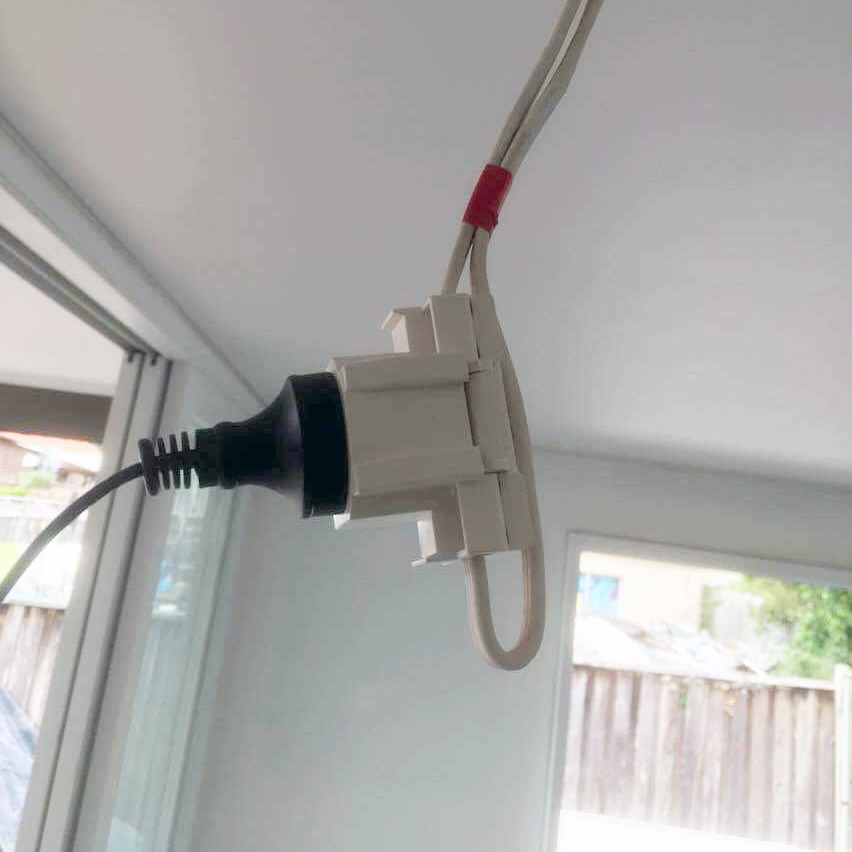

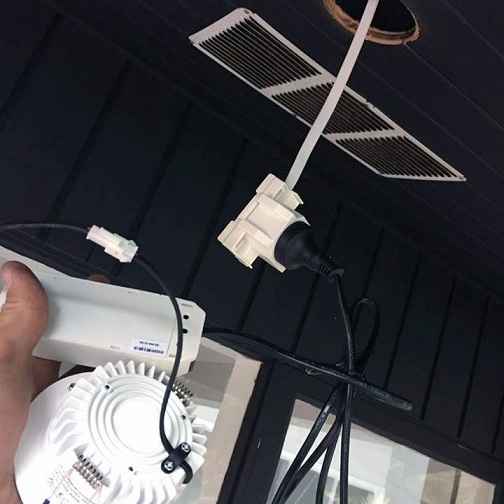

With a faster fit off time than a standard surface socket, the BRC SUPER surface socket is an easy way to add a 10 amp outlet for downlights, lighting, fans, and more.

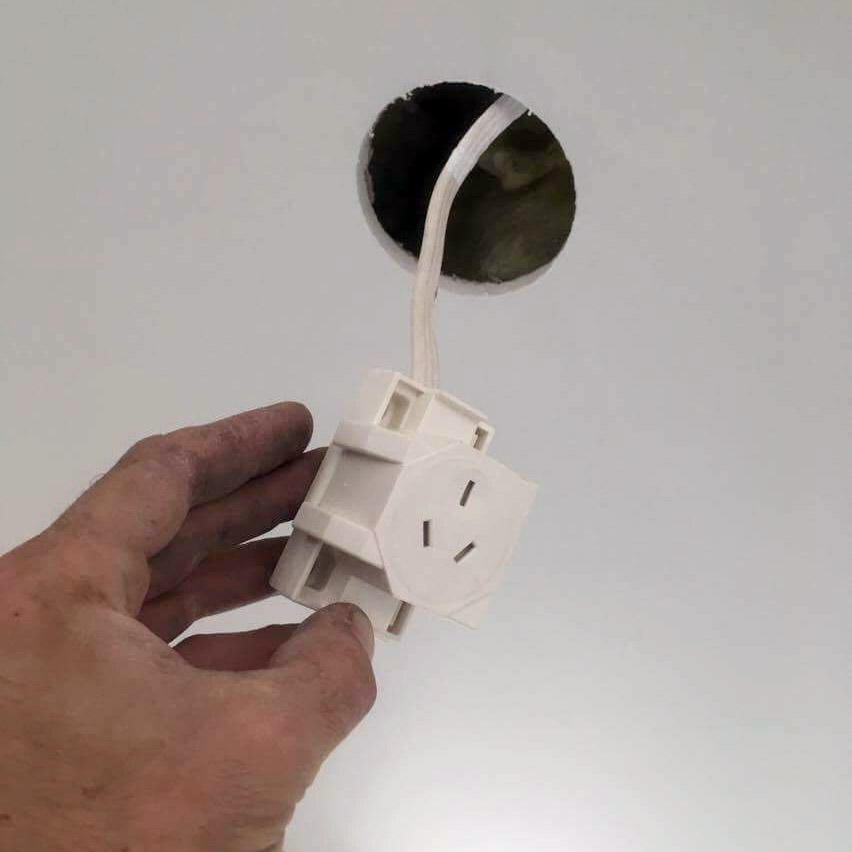

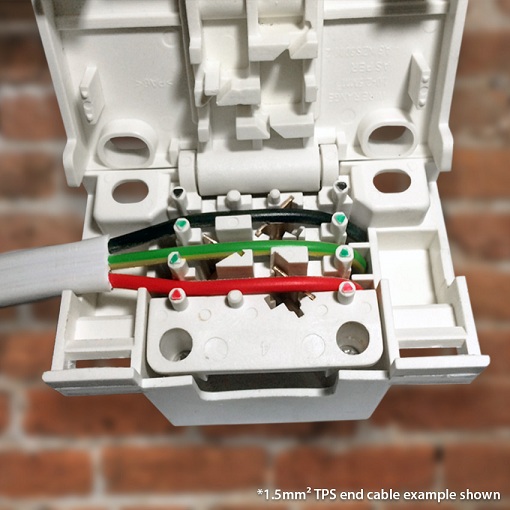

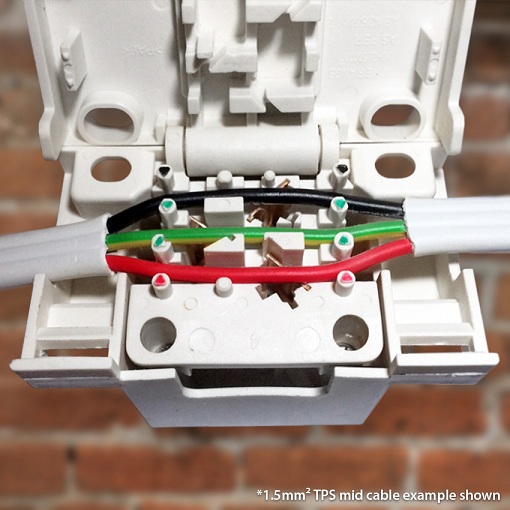

Simply strip away the correct length of outer insulation sheath, lay the coloured wiring into the matching colour coded holders, squeeze the lid shut with a 'click' and your SUPER surface socket is ready to use. The slim closed dimensions also makes it small enough to fit comfortably through cut outs starting from 65mm. When used on the end of a cable, the SUPER surface socket also has a pocket for a each core to be tucked into, instead of having live and exposed cables extended from the opposite open end.
